UHF four field antenna panels
UHF directional broadband antenna
Description
UHF four field antenna panels
| FREQ. RANGE (Mhz) | 174 – 225 | 174 – 225 | 470 – 860 | 470 – 860 |
| IMPEDANCE (Ohm) | 50 | 50 | 50 | 50 |
| V.S.W.R. | < 1.2:1 | < 1.2:1 | < 1.3:1 | < 1.3:1 |
| GAIN (dBd) | 7.5 | 7.5 | 13 | 13 |
| CONNECTOR | 7/16 | 7/8 | 7/16 | 7/8 |
| MAX POWER (KW) | 1.5 | 3 | 1 | 2 |
| POLARIZATION | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal |
| WEIGHT (Kg) | 21 | 22 | 24 | 24 |
| DIMENSIONS (cm) | 124x87x40 | 124x87x40 | 105x45x21 | 105x45x21 |
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
UHF B IV-V BROADCAST TV PANEL

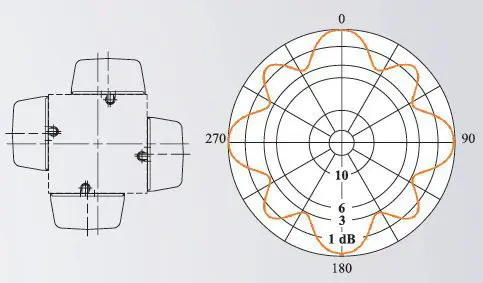

The UHF Band IV-V TV panel with 1KW maximum capacity and 7/16″ type connector is a heavy duty panel with stainless steel dipole, hot dipped steel radome and reflector, PTFE insulators and stainless steel hardware. Suitable for high power systems with horizontal or vertical polarisation. Installed on all 4 sides of a tower, they determine omnidirectional radiation patterns, UHF panels can be manufactured for vertical or horizontal polarisation on request.
