RADIO LINK RECEIVER 1.5 ÷ 2.5GHz
STL Aural FM 1500 2500 MHz
RADIO LINK RECEIVER 1.5 ÷ 2.5GHz
Broadcast your programming, transmit your program, parties, events and much more with the new radio link from ELETEC Brand

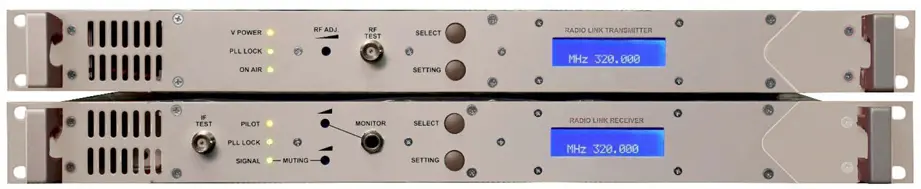

Radio Link Transmitter 10W. 1.5 – 2.5 GHz. MPX.
Please specify the operating frequency .
The 1.5-2.5GHz link series is a complete system for those who need to transmit audio from studio to the remotely located transmitter (usually mountain top). The link guarantees an incredible audio quality – punch and clarity.
The system can be connected to 110/220V AC line. Transmitter is equipped with XLR audio inputs, 2 MPX inputs (MPX and SCA) and 19KHz pilot sync output for RDS encoders. Transmitters offer up to 5W of clean adjustable power. Receivers have MPX output and 3 XLR connectors (1x mono output + left/right channel). They are equipped with 2 cavity filters with high gain RF cells.
Technical Facts:
Transmitter:
- Frequency Range: 1500~2500 MHz -20MHz sub-band
- Type of Modulation FM Class F3
- VCO Tuning 25 MHz
- Frequency Stability ± 2,5ppm (Bettr 0n request)
- Synthesizer Step 25KHz
- Power Output 1 or 5 Watts
- Spurious Emission < -80 dB or better
- Harmonic Emission < -65 dB (-80 dB on request)
- Stereo Separation > 55 dB @ 1 KHz
- Distorsion < 0.2% (TYP 00.8 %) @ 1KHz)
- Base Band 30 Hz – 60 KHz within 0.15 dB
- Unweighted S/N Ratio > 72 dB rms at 30 Hz ~ 20 KHz
- Enphasis 50 or 75 μS – selectable
- RF Connectors N-F 50 ohm
- Input Base Band Imp. 2 Kohm
- Input Mono Impedence 600 Ohm
- Cooling Forced air
- OP. Temperature Range 0 ÷ +45°C
- Maximum Umidity 90%
- AC Supply 100 ÷ 240 Volt; 47 ÷ 63 Hz
- Dimension 1 Units Rack 19″ 44 cm Depth
- Weight 6.8 Kg
Receiver:
- Frequency Ranges 1500~2500 MHz – 20MHz sub-band
- Type of Modulation FM Class F3
- VCO Tuning 25 MHz
- Frequency Stability ± 2.5 ppm (Better on request)
- Synthesizer Step 25KHz
- Image Rejection 60dB Typ.
- RN Noise Figure 6dB or lower
- Stereo Separation > 45 dB @ 1 KHx
- Distorsion < 0.5% (TYP 0.2 % @ 1KHz)
- Base Band 30 Hz – 60 KHz within 0.08 dB
- S/N Ratio > 72 dB with 0.2 mV input (Typ 78 dB)
- Deenphasis 50 or 75 μS int. selectable
- RF Connectors N-F 50 ohm
- B. Band-IF Conn. BNC-F
- Base-Band Imp. < 30 ohm
- Cooling Forced air
- P. Temp. Range 0 ÷ +45°C
- Maximum Umidity 90%
- AC Supply 100 ÷ 240 Volt; 47 ÷ 63 Hz
- Dimension 1 Units Rack 19″ 44 cm Depth
- Weight 6.2 Kg
Note:
When ordering specify required frequency band
At this time links cover 1500-2500MHz
Exact frequency inside this 20MHz segment can be selected via LCD display.
