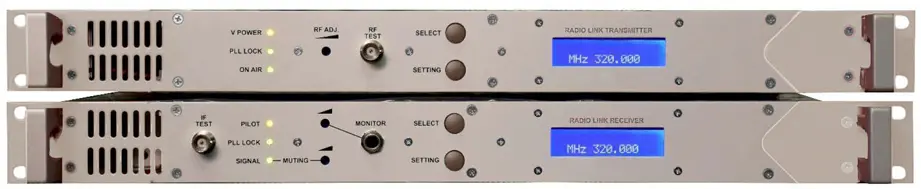

Radio link 200 MHz to 2.5 GHz

Radio Link Line covering the frequency bands from 200 MHz to 2.5 GHz and various optional accessories.

Radio Link TX from 200 MHz to 2.5 GHz in step of 20 MHz. Please specify the operating frequency at the order

FEATURES

PRIMARY APPLICATION: Link to carry audio signals to support sound FM radio broadband broadcasting.

RADIO LINKS TOPICS: optimal price/performance ratio recognized worldwide.

AUDIO PERFORMANCE: low distortion and intermodulation values, combined with a high noise/signal ratio, provide high performance also together with an integrated stereo coder with L&R, Mono, MPX (composite signal) analog audio and auxiliary SCA/RDS inputs. The stereo coder is available as an option.

HARDWARE FEATURES: extremely compact and indeformable thanks to their stainless steel chassis, in 1 rack units.

WORKING FREQUENCIES: standard working frequency bands is 200 MHz to 2.5 GHz . Working frequency (hence, the frequency band) must be specified on order.

USER-FRIENDLY FEATURES: universal 80-260 V multi-voltage power supply enables operation on different mains voltages with no need to preselect voltage. Pushbuttons for user/device interaction provide enhanced accessibility, resulting in extreme ease of use. Configuration software offers a simple, intuitive interface.

INTERFACE CONTROL: total control thanks to microprocessor with all key parameters displayed on LCD.

EASE OF MAINTENANCE: advanced module engineering ensures extreme ease of access and simple maintenance.

Transmitter mod. TX
Frequency Range:	200 – 960 MHz
Type of Modulation	FM Class F3
VCO Tuning	25 MHz
Frequency Stability	± 2,5ppm (Better 0n request)
Synthesizer Step	25KHz
Power Output	10W or 20W
Spurious Emission	< -80 dB or better
Harmonic Emission	< -65 dB (-80 dB on request)
Stereo Separation	> 55 dB @ 1 KHz
Distorsion	< 0.2% (TYP 00.8 %) @ 1KHz)
Base Band	30 Hz – 60 KHz within 0.15 dB
Unweighted S/N Ratio >	> 72 dB rms at 30 Hz ~ 20 KHz
Enphasis	50 or 75 µS – selectable
RF Connectors	N-F 50 ohm
Input Base Band Imp.	2 Kohm
Input Mono Impedence	600 Ohm
Cooling	Forced air
OP. Temperature Range	0 ÷ +50°C
Maximum Umidity	90%
AC Supply	100 ÷ 240 Volt; 47 ÷ 63 Hz
Dimension	1 Units Rack 19″ 44 cm Depth
Weight	6.8 Kg

Transmitter mod. TX Hi Band
Frequency Range:	1.4~2.5 GHz
Type of Modulation	FM Class F3
Frequency Stability	± 2,5ppm (Better 0n request)
Synthesizer Step	50KHz
Power Output	5W or 10W
Spurious Emission	< -80 dB or better
Harmonic Emission	< -65 dB (-80 dB on request)
Stereo Separation	> 55 dB @ 1 KHz
Distorsion	< 0.2% (TYP 00.8 %) @ 1KHz)
Base Band	30 Hz – 60 KHz within 0.15 dB
Unweighted S/N Ratio >	> 74 dB rms at 30 Hz ~ 20 KHz
Preemphasis	0 or 50 or 75 µS – selectable
RF Connectors	N-F 50 ohm
Input Base Band Imp.	2 Kohm
Input Mono Impedence	600 Ohm
Cooling	Forced air
OP. Temperature Range	0 ÷ +50°C
Maximum Umidity	90%
AC Supply	100 ÷ 240 Volt; 47 ÷ 63 Hz
Dimension	1 Units Rack 19″ 44 cm Depth
Weight	6.8 Kg

Radio Link RX 200 MHz to 2.5 GHz.

Please specify the operating frequency at the order.

FEATURES

PRIMARY APPLICATION: Link to carry audio signals to support sound FM radio broadband broadcasting.

RADIO LINKS TOPICS: optimal price/performance ratio recognized worldwide.

AUDIO PERFORMANCE: low distortion and intermodulation values, combined with a high noise/signal ratio, provide high performance also together with an integrated stereo coder with L&R, Mono, MPX (composite signal) analog audio and auxiliary SCA/RDS inputs. The stereo coder is available as an option.HARDWARE FEATURES: extremely compact and indeformable thanks to their stainless steel chassis, in 1 rack units each only.WORKING FREQUENCIES: standard working frequency bands is 200 MHz to 2.5 GHz .Working frequency (hence, the frequency band) must be specified on order.USER-FRIENDLY FEATURES: universal 80-260 V multi-voltage power supply enables operation on different mains voltages with no need to preselect voltage. Pushbuttons for user/device interaction provide enhanced accessibility, resulting in extreme ease of use. Configuration software offers a simple, intuitive interface.

INTERFACE CONTROL: total control thanks to microprocessor with all key parameters displayed on LCD.

EASE OF MAINTENANCE: advanced module engineering ensures extreme ease of access and simple maintenance.

Receiver mod. RX
Frequency Range:	200 – 960 MHz
Type of Modulation	FM Class F3
VCO Tuning	25 MHz
Frequency Stability	± 2,5ppm (Better 0n request)
Synthesizer Step	25KHz
Image Rejection	60dB Typ.
RN Noise Figure	6dB or lower
Stereo Separation	> 45 dB @ 1 KHx
Distorsion	< 0.5% (TYP 0.2 % @ 1KHz)
Base Band	30 Hz – 60 KHz within 0.08 dB
S/N Ratio	> 72 dB with 0.2 mV input (Typ 78 dB)
Deenphasis	50 or 75 µS int. selectable
RF Connectors	N-F 50 ohm
B. Band-IF Conn.	BNC-F
Base-Band Imp.	< 30 ohm
Cooling	Forced air
P. Temp. Range	0 ÷ +50°C
Maximum Umidity	90%
AC Supply	100 ÷ 240 Volt; 47 ÷ 63 Hz
Dimension	1 Units Rack 19″ 44 cm Depth
Weight	6.2 Kg

Receiver mod. RX Hi Band
Frequency Range:	1.4 – 2.5 GHz
Type of Modulation	FM Class F3
Frequency Stability	± 2,5ppm (Better 0n request)
Synthesizer Step	50KHz
Image Rejection	60dB Typ.
RN Noise Figure	6dB or lower
Stereo Separation	> 45 dB @ 1 KHx
Distorsion	< 0.5% (TYP 0.2 % @ 1KHz)
Base Band	30 Hz – 60 KHz within 0.08 dB
S/N Ratio	> 72 dB with 0.2 mV input (Typ 78 dB)
Deenphasis	50 or 75 µS int. selectable
RF Connectors	N-F 50 ohm
B. Band-IF Conn.	BNC-F
Base-Band Imp.	< 30 ohm
Cooling	Forced air
P. Temp. Range	0 ÷ +50°C
Maximum Umidity	90%
AC Supply	100 ÷ 240 Volt; 47 ÷ 63 Hz
Dimension	1 Units Rack 19″ 44 cm Depth
Weight	6.2 Kg
