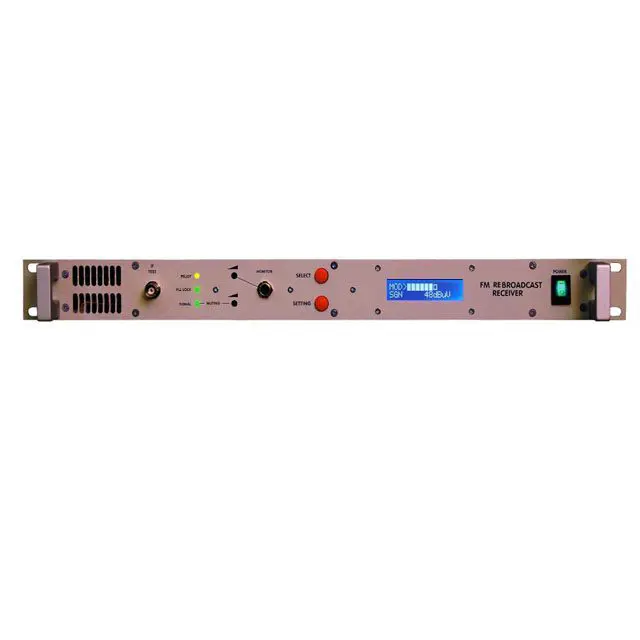

FM Receiver & Re-broadcast

The FM receiver / Re-broadcast from ELETEC BROADCAST offers state-of-the-art performance for FM reception quality.

Transport high quality stereo audio signals from the studio to the broadcast sites. Large selection of frequencies and power. Long distance coverage.

Technical data:

FREQUENCY RANGE 87.5 ÷ 108MHz

CHANNEL ADJUSTMENT By means of two push buttons – with password

TUNING STEP 10KHz

ANTENNA INPUT LEVEL from – 80dBm to 0dBm without overload

ANTENNA CONNECTOR N-F 50 OHM

IF REJECTION > 90dB

FREQUENCY METER High Visibility LCD Digital Display

DEVIATION INDICATION High visibility LCD digital display

RAISE LEVEL MEASUREMENT dBμV INDICATION

FREQUENCY ACCURACY ± 2,5 ppm

IF BANDWIDTH 280 KHz ± 5% IF BANDWIDTH

SIGNAL/ NOISE RATIO 74dB @ 400Hz at 50μS

HARMONIC DISTORTION < 0.2%.

FREQUENCY RESPONSE ± 0.05dB 30Hz to 60KHz

STEREO CROSSTALK 40dB 100Hz ÷ 10KHz (typ. 45dB @1KHz)

OUTPUT CONNECTOR MPX BNC-F 2.2V PeP 30 OHM

MUTING Adjustable from -80dBm to -30dBm

MONITORING With headphone jack 6.3mm jack headphone jack level adjustment

AC POWER SUPPLY 110÷240V

DIMENSIONS 1H rack 19″ 38cm (D)
