FM Broadcast Audio Processor 6 Bands DIGIT6 FM

FM Broadcast Audio Processor 6 Bands DIGIT6 FM

FM DAB WEB BROADCAST AUDIO PROCESSOR

Professional Digital Audio Processor DIGIT6-FM allows high quality results for compression , limitation and signal to noise

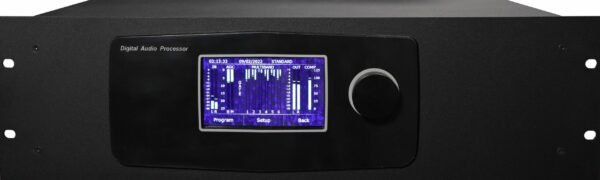

An color LCD display with touchscreen allow for easy installation, adjustment and programming of Digit6-Fm. You can always see real-time levels while adjusting the processor

The device is also provided with Left and Right balanced input channels, Left and Right balanced output channels , 2 composit MPX outputs alls with level regulation, input for AUX signal (SCA-RDS)

Possibility of equalization of the sound, in particular an  accurate adjustment of the low frequencies but also on the high frequencies in order to obtain a excellent loudness effect. It is possible to choose between 2 types of stereo Enhancer to obtain an excellent spatial effect.

All to obtain a clear and present sound

• High quality
• Excellent S/N ratio
• Color display with touchscreen
• XLR L/R Inputs
• XLR L/R Outputs
• 2 MPX Outputs
• 1 SCA Input
• 2 Bands AGC
• 6 Bands compressor
• 6 Bands limiter
• Multiband clippers
• Stereo Enhancer
• Bassboost
• High freq equalizer
• Standard rack 19” x 3U

TECHNICAL SPECIFICATIONS

Input connectors L R XLR female
Input impedance L R
>10 KΩ
electronically balanced
Output connector L R XLR male
Output impedance L R
50 Ω
electronically balanced
Preemphasis 50 μS
Input level L R Adjustable
Output level L R Adjustable
Deemphasis L R
ON/OFF
Adj
Output connectors MPX 1 MPX 2
BNC
Floating over chassis ground
Pilot tone 19 Khz
Attenuation (f>19KHz) ≥55 dB
38 Khz suppression ≥50 dB typ 55 dB
Frequency response (Without preenphasis)
B = 20 ÷15 Khz ref. @ 400 Hz ±0,15 dB
Stereo separation 20÷15000 Hz 60 dB (typ)
Output composite level MPX1-2
14 dBu max
Adjustable
Output impedance
50Ω
RFI Filtred
2 Band AGC Bass and Master
25 dB Gain reduction
Attack fixed Release Adj
Six-Band Compressor
25 dB Gain reduction
Attack fixed Release Adj
Six-Band Limiter
25 dB Gain reduction
Automatic Adj
Attack and Release time limiters According with any band frequency
Bass coupling 10 step 0÷1
Density limiter regulation
6 band indipendent
15 dB Adj
Clipper level Adjustable
Bass Boost 1 Adjustable 0÷10dB
Bass Boost 2 Adjustable 0÷10dB
Option Super Bass Adjustable 0.1÷3dB
Option Dyn Bass Fixed
Stereo Enhancer
2 Type
Adj 1 or 2 or not
2 MPX Output connectors BNC
MPX Output Mono or Stereo Adj
SCA Input connector BNC
Power supply 230V ±10% Vac 50/60Hz
Max power drain 10VA
