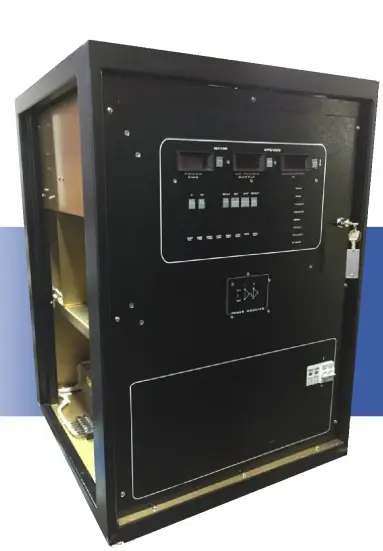

AM Transmitter Solid State 1.500 watts
AM Transmitter Solid State 1.500 watts
AM Transmitter Solid State 1.500 watts
Compact Cabinet Stainless Steel.
100% Solid State MOSFET Tecnology
Modulation PDM
Modular Architecture
Power Modules connected PLUG-IN
3 Modules Power of 1,000 watts each one.
Protections of all its parts with fault signalling.
A lightning controller output tank, against lightning.
140% of Modulation Capacity in the positive peek.
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
TRANSMITTER AM COMPACT 1000
1kW AM Transmitter
Output Power 1000 nominal watts Load Impedance 50 Ohms unbalanced Frequency response +/- 0.5 dB between 40 Hz and 10 Khz Harmonic Distortion less than 1.5% at 90% modulation, measured between 40Hz and 10Khz Modulation Capacity Better than 140% at positive peak at 100% of Nominal Power Carrier Amplitude Shift Less than 1% Radiation of Harmonic and Spiral Signals Better than 75 dB below the carrier level Residual Noise Better than 65 dB Frequency Stability +/- 5 Hz or better Audio Input Level + 10 dBm nominal for 100% modulation Supply Voltage 110 VAC / 220 VAC with taps of +/- 5% and 10% 1 phase Power Consumption Typical efficiency of 80% for 100% of rated carrier power Operating Conditions Ambient temperature - 5ºC and 40ºC Relative humidity between 0% and 90%. Altitude between 0 and 3500 meters above sea level Size and Weight 80 Kgr. Height 84cm, Depth 60cm, Width 60cm
