2.5kW Transmitter/Exciter
2.5kW Radio Transmitter / Exciter
2500W FM Transmitter
Start FM transmitting quickly with the Eletec 100 100 Watt FM transmitter

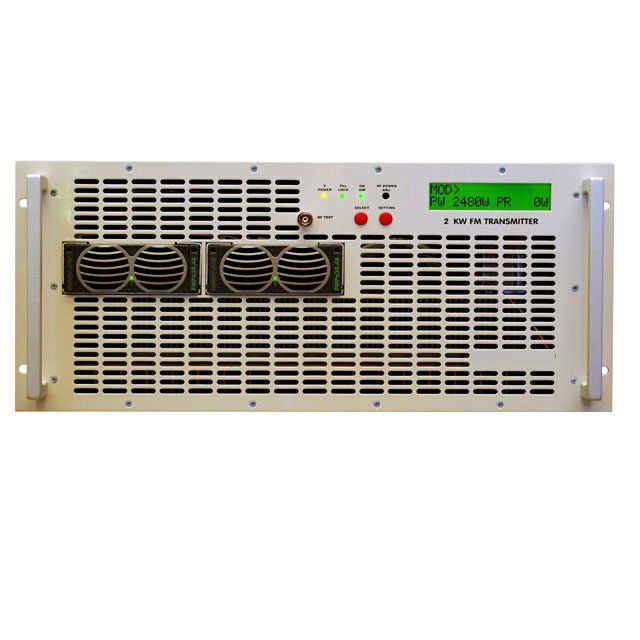

The FM2500 2500 Watt FM transmitter is a compact and reliable solution for radio broadcasting
Designed for both professional use, this transmitter offers excellent sound quality with a stable transmission range.
This transmitter is easy to install, making it an ideal choice for community radios
This 2500W FM Transmitter transmitter can be ordered with the following options:
- Stereocoder
- RDS Encoder
- on air audio processing : sucha as TITAN FM Audio processor 6 band/stereo coder
2.5kW Transmitter/Exciter
Phase Locked Loop Programmable
FM Exciter/Transmitter 87.5 – 108 MHz Range
2500 W FM Mono / MPX / Stereo Transmitter
Start FM transmitting quickly with the Eletec 100 100 Watt FM transmitter
The FM2500 2500 Watt FM transmitter is a compact and reliable solution for radio broadcasting
Designed for both professional use, this transmitter offers excellent sound quality with a stable transmission range.
This transmitter is easy to install, making it an ideal choice for community radios
This 2500W FM Transmitter transmitter can be ordered with the following options:
- Stereocoder
- RDS Encoder
- on air audio processing : sucha as TITAN FM Audio processor 6 band/stereo coder
TECHNICAL SPECIFICATION
| FREQUENCY RANGE: MODULATION: EMISSION CLASS: VCO TUNING: FREQUENCY STABILITY: SYNTHESIZER STEP: POWER OUTPUT: SPURIOUS EMISSION: HARMONIC EMISSION: STEREO SEPARATION: DISTORSION: BASE BAND: UNWEIGHTED S/N RATIO: ASYNCRONOUS AM S/N Ratio: SYNCRONOUS AM S/N Ratio: PRE-ENPHASIS 50/75 µS : RF OUT CONNECTOR N-F: MPX INPUT: MONO INPUT: SCA INPUT: COOLING: TEMPERATURE RANGE: MAXIMUM UMIDITY: AC SUPPLY: DIMENSION: WEIGHT: |
87.5 ÷ 108 MHz FM F3E 25MHz ± 2.5 ppm 100KHz opz. 10KHz 0 – 2500 Watts (2.5kW) < – 80 dB or better < – 70 dB > 55 dB @ 1KHz (typ. 60dB) < 0.1 % (typ. 0.06%) @ 1KHz 30 Hz÷60 KHz within 0.15 dB >80 dB (30Hz ÷ 15KHz 50 µS RMS) > 70 dB Ref. 100% AM 400Hz > 65 dB with FM @ 75KHz @400Hz Jumper selectable 50 Ohm BNC-F / 0dBm / -10dBm÷ 6dBm 2KOhm CANON / 0dBm / -10dBm÷ 6dBm 2KOhm 3 BNC-F / 0dBm / -10dBm÷ 6dBm 2KOhm Convection for RF PA and a little fan for inside 0 ÷ 45 °C 90 % 194 ÷ 260 VAC / – 47 ÷ 63 Hz 4 unit rack 19″ Kg |
