Compact Stereo Mono MPX FM transmitter  1500W FM with built in stereo Encoder

1500W FM 87,5÷108MHz transmitter

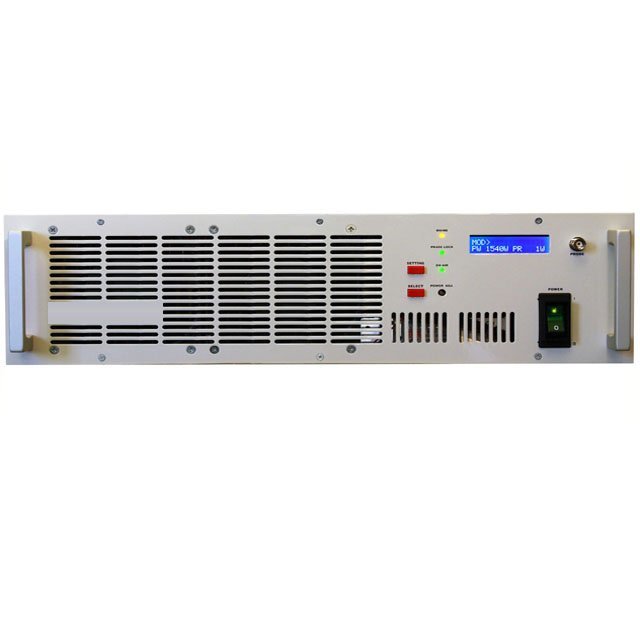

1500 W FM Mono / MPX / Stereo Transmitter

Start FM transmitting quickly with the Eletec 1500  1500 Watt FM transmitter

The E1500  1500 Watt FM transmitter is a compact and reliable solution for radio broadcasting

Designed for both professional use, this transmitter offers excellent sound quality with a stable transmission range.

This transmitter is easy to install, making it an ideal choice for community radios

This 1500W FM Transmitter transmitter can be ordered with the following options:

• Stereocoder
• RDS Encoder
• on air audio processing : sucha as TITAN FM Audio processor 6 band/stereo coder

FREQUENCY RANGE 87.5 ÷ 108 MHz
MODULATION FM
EMISSION CLASS F3E
VCO TUNING 25 MHz
FREQUENCY STABILITY ± 2.5 ppm
SYNTHESIZER STEP 100KHz
POWER OUTPUT 0 ÷ 1500 Watts
SPURIOUS EMISSION < – 80 dB or better
HARMONIC EMISSION < – 70 dB STEREO SEPARATION > 55 dB @ 1KHz
DISTORSION < 0.1 % (typ. 0.06%) @ 1KHz BASE BAND 30 Hz ÷ 60 KHz within 0.15 dB UNWEIGHTED S/N RATIO >80 dB (30Hz ÷ 15KHz 50 µS RMS)
ASYNCRONOUS AM S/N Ratio > 70 dB Ref. 100% AM 400Hz
SYNCRONOUS AM S/N Ratio > 65 dB with FM @ 75KHz @400Hz
PRE-ENPHASIS 50 OR 75 µS int. selectable
RF OUT CONNECTOR N-F 50 Ohm
MPX INPUT CONNECTOR BNC-F
MPX INPUT IMPEDANCE 2 KOhm
SCA INPUT CONNECTOR 3 BNC-F
COOLING Forced Air
OP.TEMPERATURE RANGE -10 ÷ 45 °C
MAXIMUM HUMIDITY 90 %
AC SUPPLY 100 ÷ 240 VAC – 47 ÷ 63 Hz
DIMENSION 3 unit rack 19″
WEIGHT 30 Kg

FAL1500 – 1500W FM 87,5÷108MHz transmitter
